| Vibration Calibrator |
|
|
|
|
|
 |
|

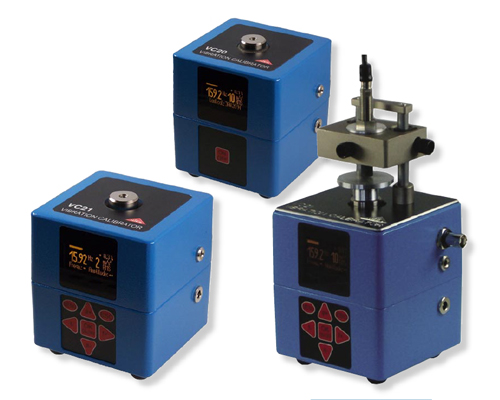

Vibration Calibrators VC20, VC21,VC21D
|
Application
-
Rapid and easy calibration of vibration transducers for acceleration, velocity and displacement
-
Calibration and fault detection of vibration measuring systems
-
Calibration of low frequency equipment for whole-body vibration to ISO 8041 and building vibration to DIN 4150-3 with model VC21(D)
-
Operating temperature range : -10 .. 55 °C
|
|
|
|
 |
|

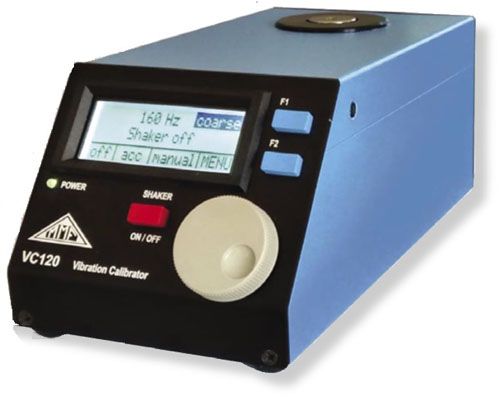

Vibration Calibrating System VC120
|
-
Application
-
Rapid and easy calibration and fault detection of vibration sensors and instruments
-
Determination of amplitude response
-
Vibration acceleration (rms) : 1 m/s²
-
Vibration frequency : 70 .. 10 000 Hz
-
Harmonic Distortion (THD) < 2 % (70 .. 3000 Hz)
-
Temperature range : -10 .. 55 °C
|
|
|
|
|
|
|
|
|
|
