Building Vibration |
|
|
|

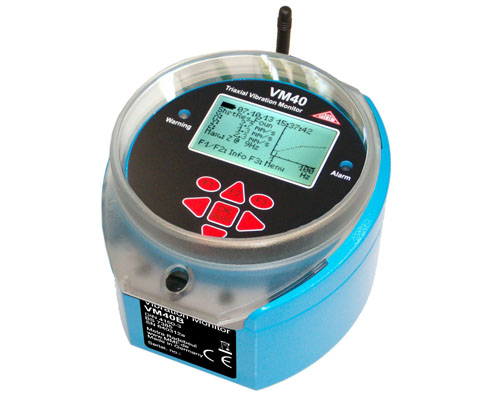

Triaxial Vibration Monitor VM40A-VM40B
|
-
triaxial measurement and monitoring of vibrations at buildings, bridges, towers, pipelines and other large structures
-
Measuring range
-
Acceleration: 0.01 - 15 m/s²;
-
Velocity: 0.1 - 2400 mm/s at 1 Hz;0.1 - 30 mm/s at 80 Hz (frequency dependent)
-
Frequency ranges (-3 dB) : 0,8 - 100 Hz; 0.8 - 395 Hz; 5 - 150 Hz
-
Operating temperature range : -20 .. 60 °C
|
|
|
|
|
|
|
|
|
|
|
|
