Application

• Versatile tool for vibration measurement during product development and for health and safety at the workplace to EU guideline
• Measurement of hand-transmitted vibration to ISO 5349
•  Measuerement of whole-body vibration to ISO 2631
•  SEAT measurement at driver seats
•  Vibrations on passenger and merchant ships to ISO 6954
•  Condition monitoring of rotating machinery in three axes
•  Vibration measurement in vehicles and other vibrating structures

Band filters

• Human vibration: 0.4 - 100 Hz; 6.3 - 1259 Hz
• Acceleration: 0.1 - 2000 Hz; 1 - 1000 Hz
• Velocity: 1 - 100 Hz; 2 - 1000 Hz; 10 - 1000 Hz
• Dsiplacement: 5 - 250 Hz

Measuring ranges (with sensor 1 mV/ms-2)

• Acceleration: 800 m/s²; velocity: 100 - 10000 mm/s; displacement: 250 - 15000 μm

Linearity range :  > 75 dB for ± 6 % error

Temperature range :   -4 .. 140 °F, < 95 % relative humidity, no condensation

Application

• Measurement of hand-arm vibrations to EN ISO 5349:2001 during development and application of hand-held machine tools
• Evaluation of the potential risk of diseases in blood vessels, nerves, joints, bones and muscles

Application

•  VM-BODY: Measurement of whole-body vibrations in vehicles,railways, construction machines, buildings etc. to EN ISO 263
• VM-SHIP: Measurement of whole-body vibrations on board ships
• to ISO 6954
• Evaluation of comfort and potential health risk

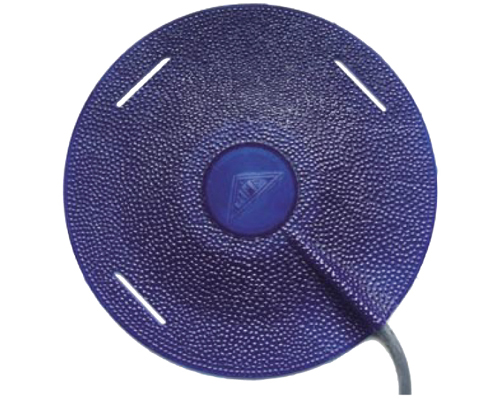

• Triaxial accelerometer built into flexible rubber pad

• Linear frequency range
  • f3dB :    0,15 .. 5800 Hz
  • f10% :   0,35 .. 4000 Hz
  • f5% :   0,5 .. 2500 Hz
• Resonant frequency
  • fr > 12 ( without pad) kHz
