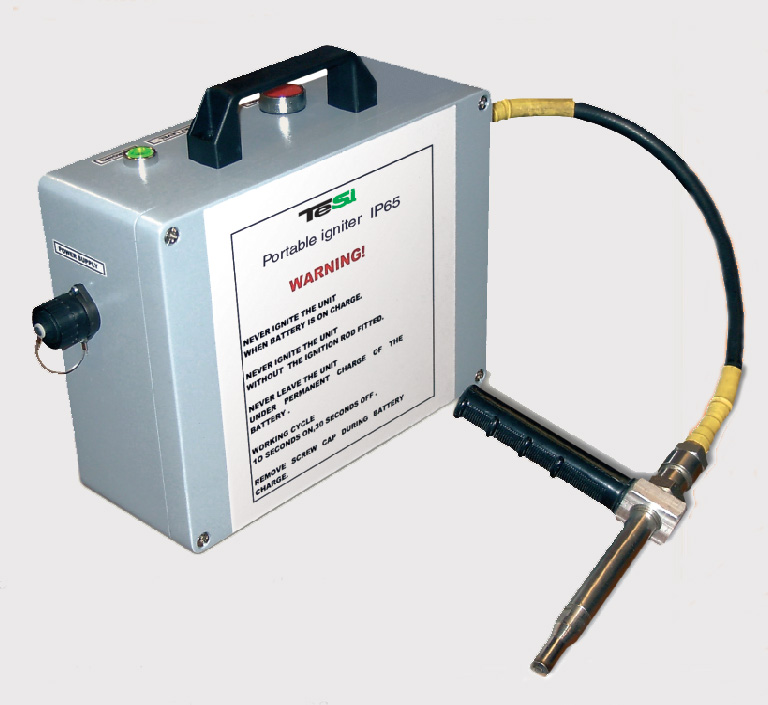

High Energy Battery Operated Portable Igniter

Fitted with internal 12 V 7.2 Ah rechargeable battery and built-in automatic charger

INPUT VOLTAGE: 12 Vdc

OUTPUT VOLTAGE: 1400 Vdc

OUTPUT ENERGY (per Spark): 18 J

SPARK RATE: 4 Sparks/second

INPUT POWER: 80 W

Operating temperature 760°C (1000°C Max)

High Energy Battery Operated  Portable Igniter

Fitted with internal 12 V 3.6Ah rechargeable battery and built-in automatic charger

INPUT VOLTAGE: 12 Vdc
OUTPUT VOLTAGE: 1400 Vdc
OUTPUT ENERGY (per Spark): 18 J
SPARK RATE: 4 Sparks/second
INPUT POWER: 21 W

Operating temperature 760°C (1000°C Max)

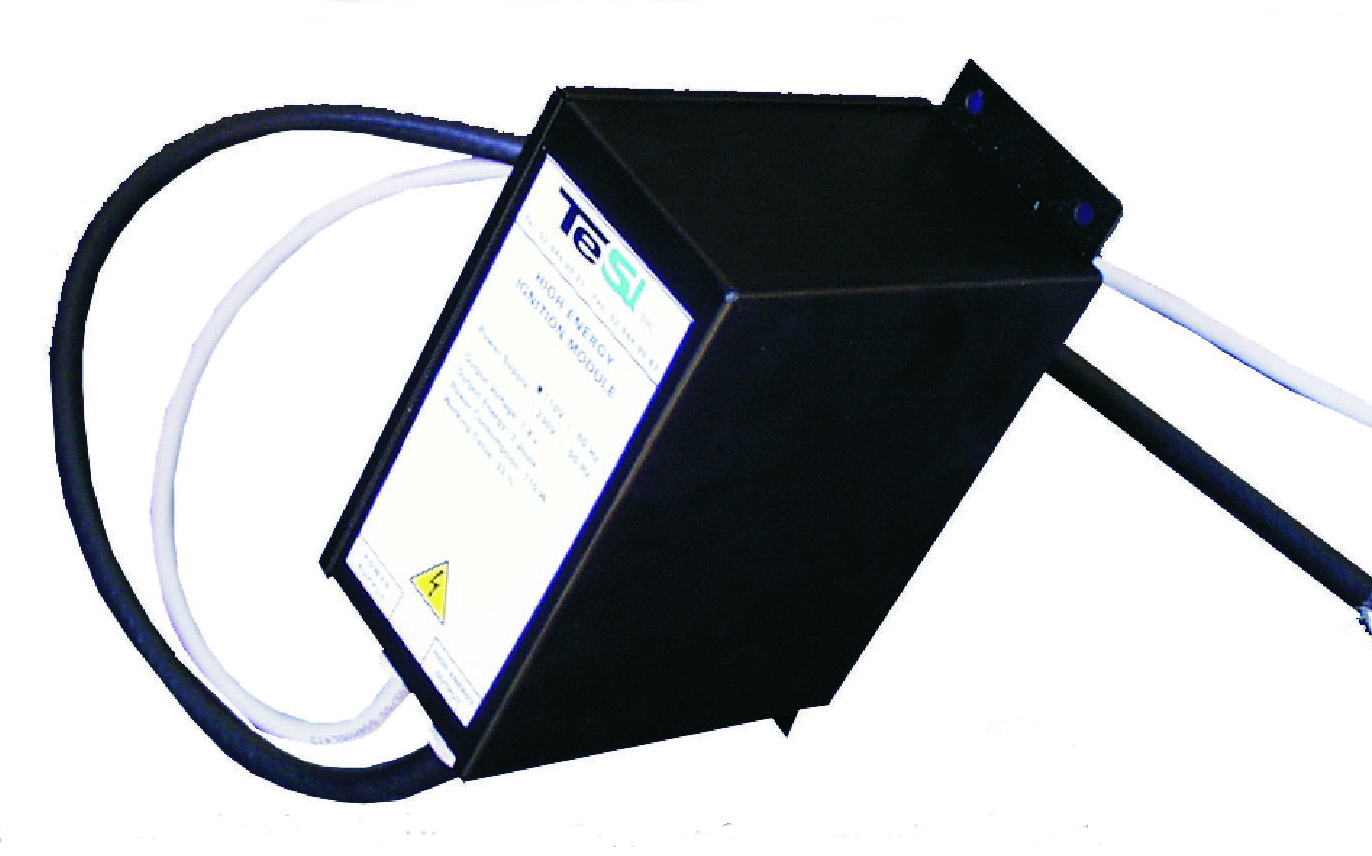

can be used to directly ignite oil and gas burners

It has output energy of up to 10 Joules provides powerful sparks with a rate of 24 sparks/sec

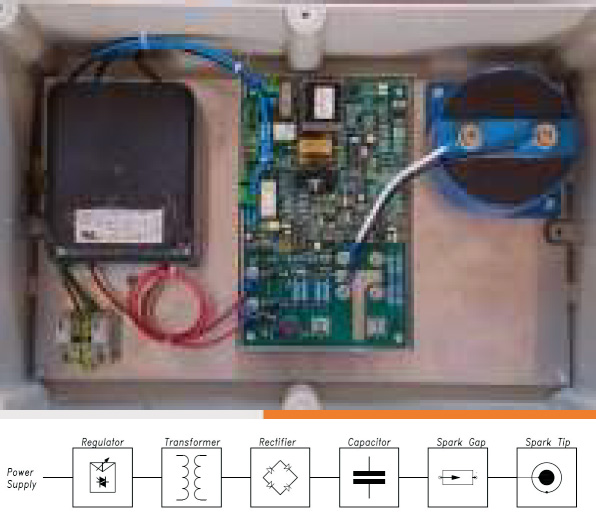

This circuit is able to monitor :

• Transformer temperature and prevent any damage due to over temperature;
• Transformer max current, capacitor max voltage, spark down rate(<2); Maxworking time.

High reliability

Low maintenance

Easy & Fast maintenance

Accessories & spare parts

can be used to directly ignite oil and gas burners

It has output energy of up to 15 Joules provides powerful sparks with a rate of 20 sparks/sec

This circuit is able to monitor :

• Transformer temperature and prevent any damage due to over temperature;
• Transformer max current, capacitor max voltage, spark down rate(<2); Maxworking time.

High reliability

Low maintenance

Easy & Fast maintenance

Accessories & spare parts

can be used to directly ignite oil and gas burners

It has output energy of up to 24 Joules provides powerful sparks with a rate of 6 sparks/sec

This circuit is able to monitor :

• Transformer temperature and prevent any damage due to over temperature;
• Transformer max current, capacitor max voltage, spark down rate(<2); Maxworking time.

High reliability

Low maintenance

Easy & Fast maintenance

Accessories & spare parts

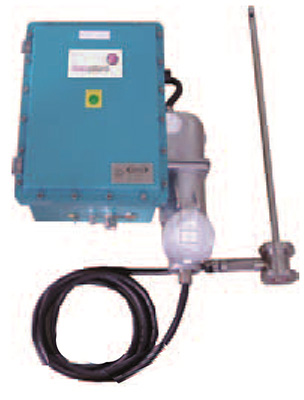

Designed to ignite burners on flares and ground flares.

Capable of supplying a good spark with up to a 500 meter cable length

Able to ignite low quality fuels as well

Waterproof performance

Key features

• A complete range firing on natural gas or propane
• Flame detection by ionisation incorporated in the ignitor head
• Up to 4 MW calorific power
• Flame level display on the ignitor head

Key features

• Up to 1 million maintenance free sparks
• Many configurations are available, from portable versions to fully stationary types
• Operating temperature resistance to over 1000°C

Key features

• Suitable for safe ignition of every gas or liquid fuel
• Explosion-proof construction
• Available in fixed or retractable versions
• Best solution for ignition in Claus units sulphur furnaces
