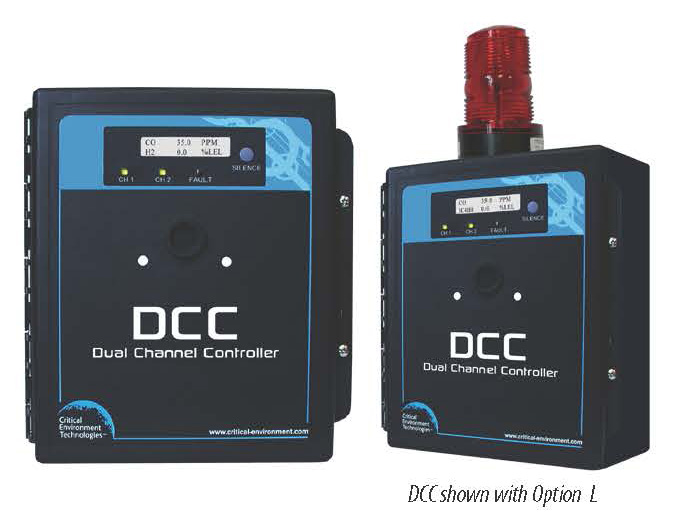

DCC Dual Channel System
|
Key Features
-
Single or dual channel operation
-
Flexible internal and/or remote sensor configurations
-
2x16 character LCD display with LED indicators
-
Two 5-amp SPDT dry contact relays
-
Two 4- 20 mA outputs with VFD control
-
One configurable 4 - 20 mA input
-
Optional loud or water tight, door mounted buzzer
-
Thermal resetting fuses
-
Standard water / dust tight, corrosion resistant enclosure (drip proof); IP54 rated with optional splash guard installed
|
|
|
|
|

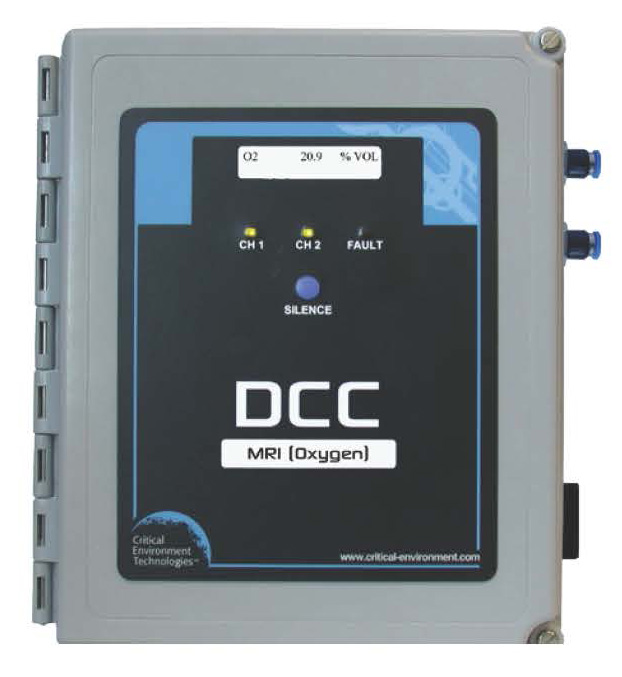

DCC-MRI Oxygen Sampling System
|
Key Features
-
2x16 character LCD display with LED indicators
-
Loud side mounted buzzer
-
Blocked flow alarm
-
Sample draw pump
-
Adjustable flow meter
-
Oxygen sensor 0 - 25% volume (3 year lifespan)
-
One 5-amp SPDT dry contact relay
-
Two 4- 20 mA outputs (O2 reading, Flow Alarm)
-
Thermal resetting fuses
-
RoHS compliant circuit boards
-
Standard water / dust tight, corrosion resistant enclosure (drip proof)
|
|
|
|
|

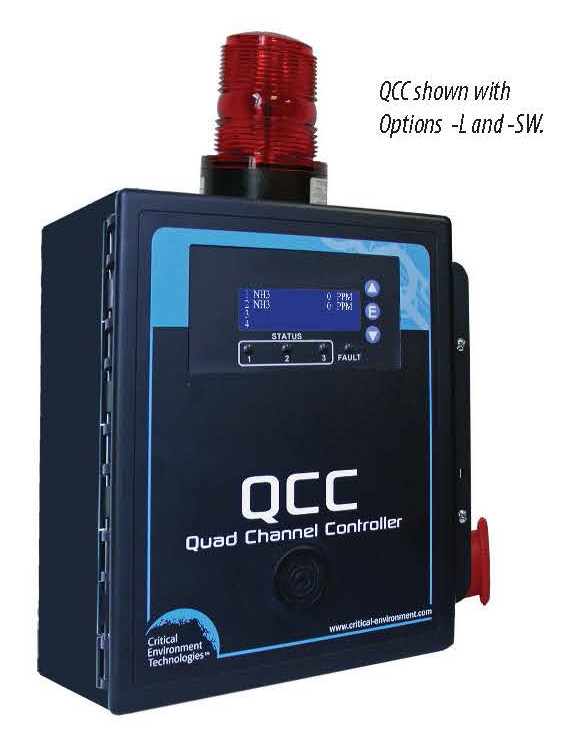

QCC Quad Channel Controller
|
Key Features
-
Up to 4 channels of gas readings in any combination of analog and/or digital transmitters
-
Configured with either a Modbus® RS-485 output signal for LAN and WAN communications or a BACnet® RS-485 output signal for WAN communications only (for communicating with a BAS)
-
Optional two 4-20 mA outputs with data logging
-
Three 5-amp SPDT dry contact relays
-
4 line, 20 character LCD display with LED indicators
-
Standard water / dust tight, corrosion resistant enclosure (drip proof); Pending IP54 rating with door mounted, water tight buzzer installed.
-
USB port for firmware upgrades and data logging
-
RoHS compliant circuit boards
-
Thermal resetting fuses
|
|
|
|
|

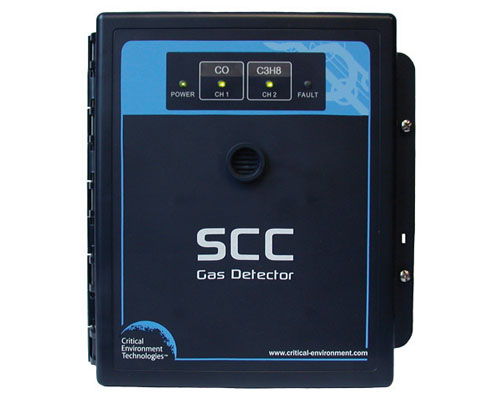

SCC Self Contained Controller
|
Key Features
-
Single or dual channel operation
-
Internal or remote sensors configurations
-
Six conduit entry ports
-
Thermal resetting fuse
-
LED indicators
-
Audible alarm
-
Two 5-amps SPDT dry contact relays
-
Optional 4 – 20 mA input (replaces remote combustible sensor)
-
Standard water / dust tight, corrosion resistant enclosure (drip proof); IP54 certified with optional splash guard installed
-
RoHS compliant circuit boards
|
|
|
|
|

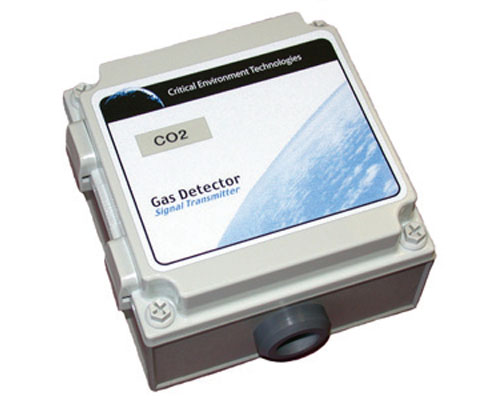

AST-I Industrial Infrared Transmitters
|
Key Features
-
Low power consumption
-
Dual temperature compensated pyroelectric infrared detectors
-
Fast response with accurate low-level gas detection
-
Long sensor life
-
Water / dust tight / corrosion resistant polycarbonate enclosure
-
Linear analog (4-20 mA) output
-
Target gases include CO2, Hydrocarbons (including Methane), Nitrous Oxide
-
RoHS compliant circuit boards
|
|
|
|
|
AST-IS Industrial CO2 Transmitters
|
Key Features
-
Single internal infrared CO2 sensor
-
Operating power 24 VDC or 24 VAC nominal
-
4 - 20 mA or 0 - 10 VDC linear output signal
-
0 - 2,000 ppm standard range
-
0 - 4% volume measurement range (AST-IS18 for winery applications)
-
Relay output (AST-IS18 only)
-
LCD digital display (AST-IS6 and AST-IS18 only)
-
Low maintenance, easy calibration
-
RoHS compliant circuit boards
-
CE certified
|
|
|
|
|

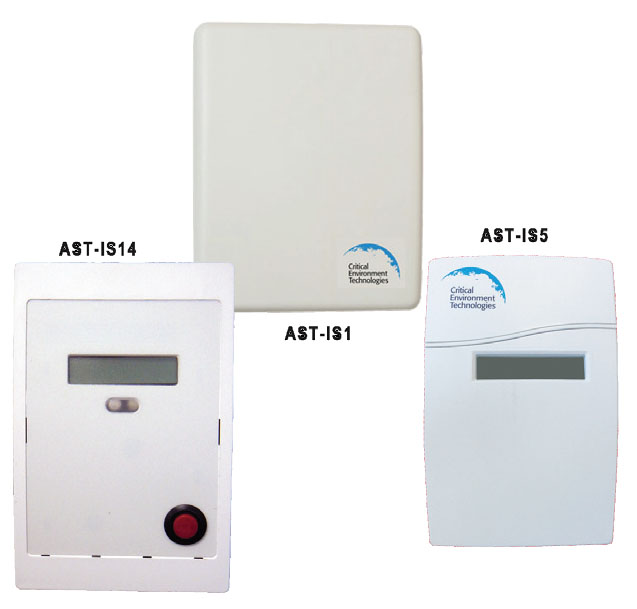

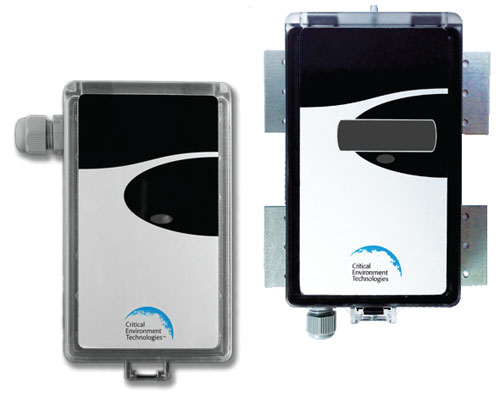

AST-IS Standard CO2 Transmitters
|
Key Features
-
Single internal infrared CO2 sensor
-
Linear 4 - 20 mA or 0 - 10 VDC output
-
Operating power 24 VDC or 24 VAC nominal
-
Low maintenance, easy calibration
-
0 - 2,000 ppm standard range
-
Relay output (AST-IS5 model only)
-
1 LEED credit (AST-IS14 model only)
-
Attractive PVC enclosures ideal for indoor use
-
RoHS compliant circuit boards
-
CE certified
|
|
|
|
|

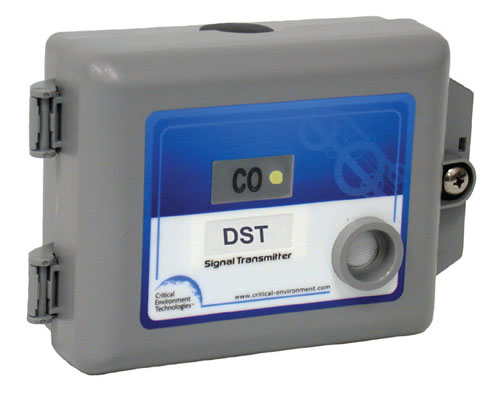

DST Digital Transmitter
|
Key Features
-
RS485 digital output signal
-
Wide variety of sensors for all applications
-
RoHS compliant circuit boards
-
Configured for four wire multidrop wiring
-
Thermal resetting fuse
-
LED indication for Power, Fail and Alarm
-
Power requirement 24 VDC nominal
-
Simple calibartion procedure
|
|
|
|
|

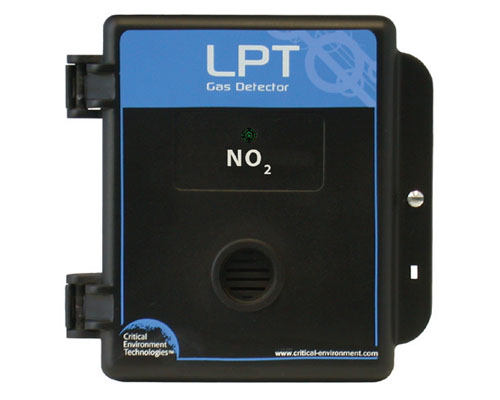

LPT Low Power Transmitter
|
Key Features
-
2-wire loop, 3-wire VDC or 4-wire VAC power
-
Linear 4 - 20 mA output signal
-
Standard water / dust tight, corrosion resistant enclosure (drip proof). IP54 certified with optional splash guard installed.
-
Single sensor: carbon monoxide (CO) or nitrogen dioxide (NO2)
-
RoHS compliant circuit boards
-
Easy maintenance
-
Economical
-
Includes sensor CEF (calibration extending firmware)
-
Auto resetting fuse
-
Automated calibration procedure
|
|
|
|
|

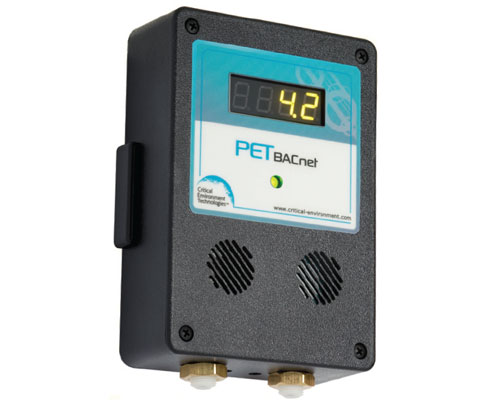

PET BACnet® Transmitter
|
Key Features
-
MS/TP BACnet communication
-
RoHS compliant circuit boards
-
Thermal resetting fuse
-
Tri-color LED indicator
-
Economical
-
Easy maintenance
-
Single or dual gas sensor
-
Includes temperature sensor
-
Includes sensor Calibration Extending Firmware (CEF)
-
BTL certified
|
|
|
|
|

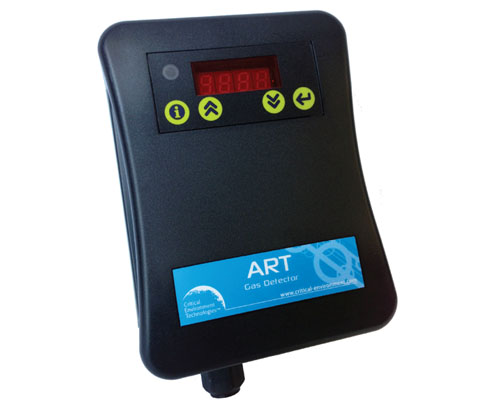

ART Infrared Refrigerant Transmitter
|
Key Features
-
Long life, non-dispersive infrared refrigerant sensor allows for accurate, low level leak detection with no cross interferences from other gases
-
Two models available: Broadband or Gas Specific
-
Detects a wide range of refrigerants
-
No field calibrations required
-
Modbus RTU interface to connect to BAS/BMS systems
-
On-board alarm relay
-
Bright, alpha-numeric, LED display with visual and audible alarms
-
User selectable, analog output: 4-20 mA, 0-5V, 1-5V, 0-10V, 2-10V
-
RoHS compliant circuit boards
|
|
|
|
|

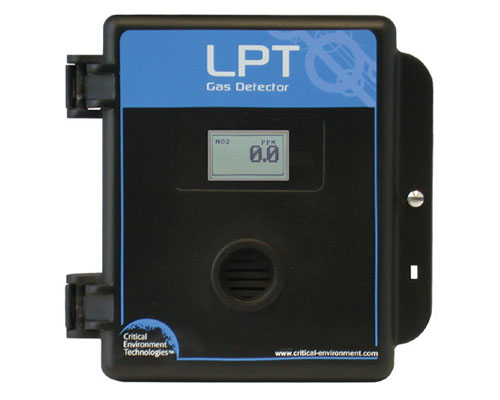

LPT-A Analog Transmitter
|
Key Features
-
Full featured, standalone transmitter
-
3-wire VDC or 4-wire VAC power
-
24 volt DC or AC power (nominal)
-
Linear 4 - 20 mA or 0 - 10 volt output signal
-
1 dry contact relay (2 amps @ 30 V SPDT)
-
Single sensor: available with an internal electrochemical sensor or catalytic for combustibles (internal or external) or solid state for refrigerants or TVOCs (internal or external) sensor
-
Graphic LCD display (user selectable, on / off) available with optional heater
-
Audible alarm
-
Standard water / dust tight, corrosion resistant enclosure (drip proof). IP54 certified with optional splash guard installed
-
Auto resetting fuse
-
Automated calibration procedures for non-intrusive applications
-
RoHS compliant package
|
|
|
|
|
CXT Explosion Proof Transmitter
|
Key Features
-
Large graphic LCD display for real time monitoring
-
Heated sensors and electronics for low temperature operation
-
4 - 20 mA or Modbus® digital outputs
-
Displays values in bar graphs or 30 minute onboard data trends
-
Security menu with authorization code access to lock critical parameters
-
Three 5 amp relays
-
Rugged construction to withstand impact damage
-
CSA & ATEX certified
|
|
|
|
